FXR Outreach Radio Package
ICOM IC-7300 HF Plus 50 MHz Transceiver
ICOM IC-7300 HF Plus 50 MHz Transceivers employ a new-technology real-time touch-screen spectrum scope that leads its class in resolution, sweep speed and dynamic range. While listening to received audio, you can check the real-time spectrum scope and quickly move to another signal.
When you first touch the scope screen around the intended signal, the touched part is magnified. A second touch of the scope screen changes the operating frequency and allows you to accurately tune to the desired signal. The large 4.3 in. color TFT touch LCD offers intuitive operation. Using the software keypad of the touch screen, you can easily set various functions and edit memory contents.
The built-in antenna tuner memorizes its settings based on your transmit frequency, so that it can rapidly tune when you change operating bands. The Enforced Tuning function allows a wide range of temporary antennas to be tuned. NOTE: Do not use the Enforced Tuning function except in case of an emergency. Transmitter output power may be automatically reduced.
Other IC-7300 features include:
HM-219 hand microphone supplied
Large, effective cooling fan system
Multi-function meter
101 memory channels (99 regular, plus 2 scan edges)
Optional RS-BA1 IP remote control software (the spectrum scope with the waterfall can be observed)
CW functions: Full break-in, CW reverse, CW auto tuning
Samlex Switching Power Supplies SEC-1235P-M
The Samlex SEC-1235P-M is destined to become THE premier lightweight 13.8 VDC desktop power supply, offering updated features and upgraded performance and ratings. Universal input of 100 to 240 VAC, 50/60 Hz, provides the ultimate international flexibility in an attractive package, including switchable backlighting of separate ampere and volt meters, 30A continuous, 36A peak capability and average efficiency over 89%. Output ripple and noise is limited to just 100 mV peak to peak at full load.
The time delay fuse is 6.3A, 250 V, 5mm x 20mm. Your equipment is protected by built-in safety features including overload and short circuit protection, output over voltage protection and over temperature protection. This model is internally adjustable over the12.5 to 15.0 VDC range and is capable of operating in ambient temperatures from -20 to +50 degrees C (-4 to +122 degrees F). The cooling fan only operates when necessary. Weighing only 3.8 lbs. (1.7 kg), this is the supply that is easy move or to take along to run your equipment in almost any conditions.

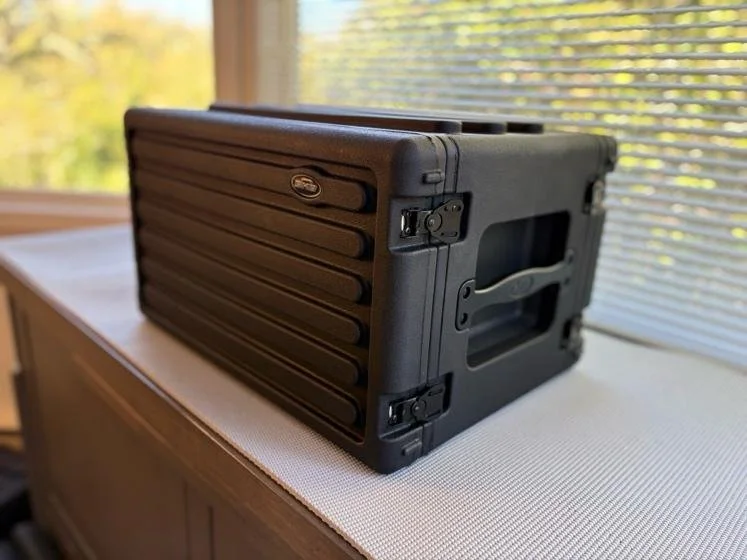

The FXR Outreach is a High Frequency radio is a self-contained mobile unit that is designed to be used in any situation to communicate locally or long distances, connecting your community to outside assistance. This radio has an internal tuner, and an additional tuning unit is added for fine tuning capability. This radio can be plugged into any type of power source and is built into a user-friendly stackable/waterproof case.
LDG Electronics AT-200ProII Automatic Antenna Tuners
AT-200PROII
The AT-200ProII tuners will match virtually any kind of coax-fed antenna, including Yagis, dipoles, inverted Vs, slopers, loops, or just about anything. They will typically match a 10:1 SWR down to 1.5:1 in just a few seconds. You can also use the AT-200ProIIs with end-fed antennas, random wires, and antennas fed with ladder line with the optional LDG balun. Operation couldn't be simpler--while transmitting a carrier, just press the tune button. An automatic tuning cycle will begin and then end a few seconds later with the tuners set at the lowest SWR (almost instant for frequencies stored in memory).
The AT-200ProII automatic memory tuners are the latest in a long line of innovative LDG Electronics tuners and will allow you to get the most out of your Kenwood, Yaesu, Ten-Tec, or ICOM radio that operates at higher power.
Additional features include:
5 to 250 watts SSB and CW (100 watts on 6M, 75 watts HF Digital, RTTY, PSK, FT8)
Easy-to-read LED bar graph display for RF power, SWR, and status
LEDs for antenna position and bypass
4,000 memories (2,000 for each antenna) for instantaneous band changing
2-position antenna switch with memories for four antennas on each position
Tuning time: 0.5 to 6 seconds full tune, less than 0.1 second memory tune
Built-in frequency counter for memory operation
Tunes 6 to 800 ohm loads (16 to 150 ohms on 6m), 6 to 3,600 ohms with optional 4:1 balun
Includes 6 ft. DC power cable
Power requirements: 11 to 16V DC at 750 mA max during tuning
